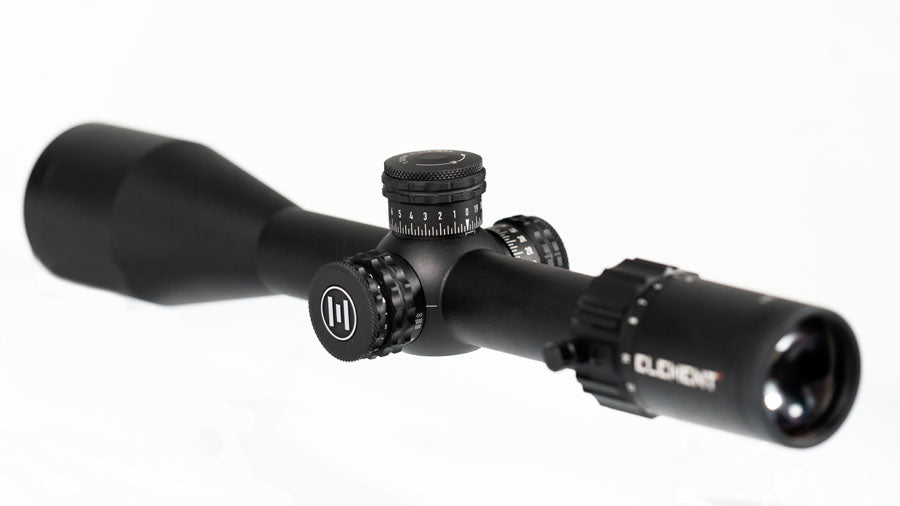

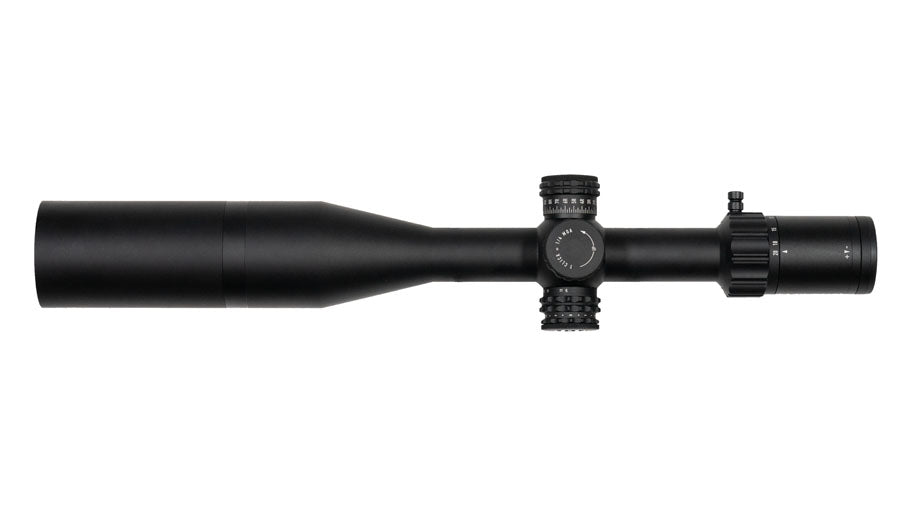

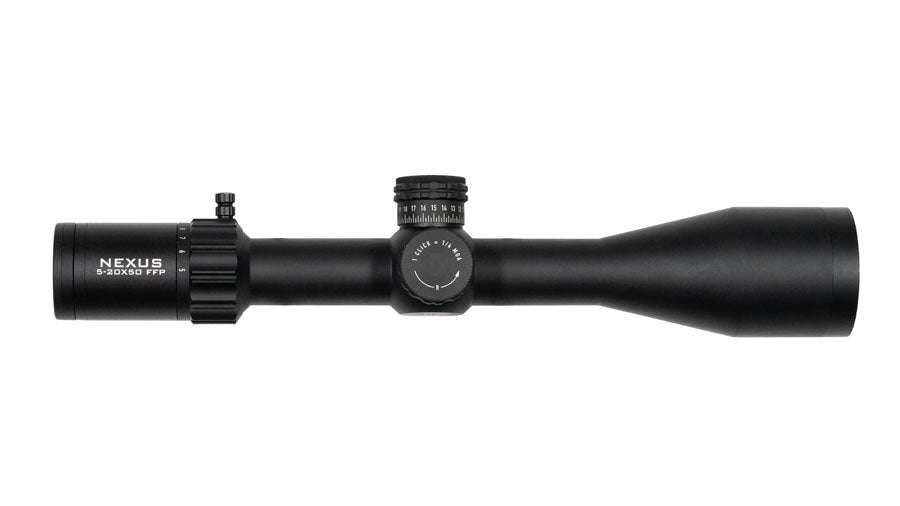

ELEMENT NEXUS 5-20x50 FFP
ELEMENT NEXUS 5-20x50 FFP
Couldn't load pickup availability
The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understands optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions. There’s a reason for the price tag: We’ve held nothing back, selecting only the very best materials, engineering teams, assembly procedures and technical inspections – and you’ll realize that the moment you pick it up. Need something that ticks all the boxes? Look no further than our flagship, the NEXUS.
Share









-

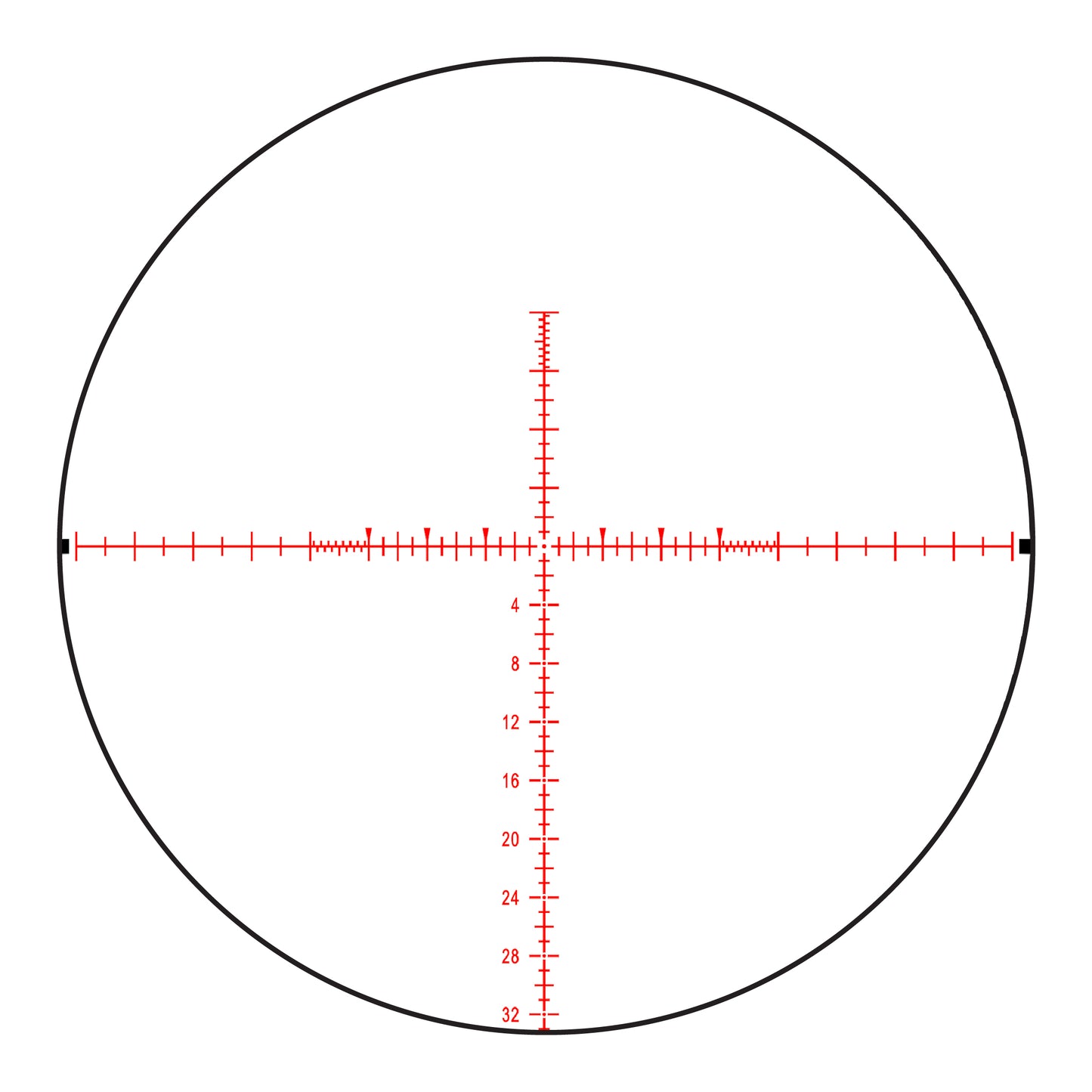

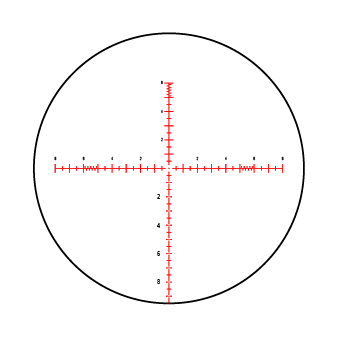

APR-1C MOA
-
APR-1C MRAD
-

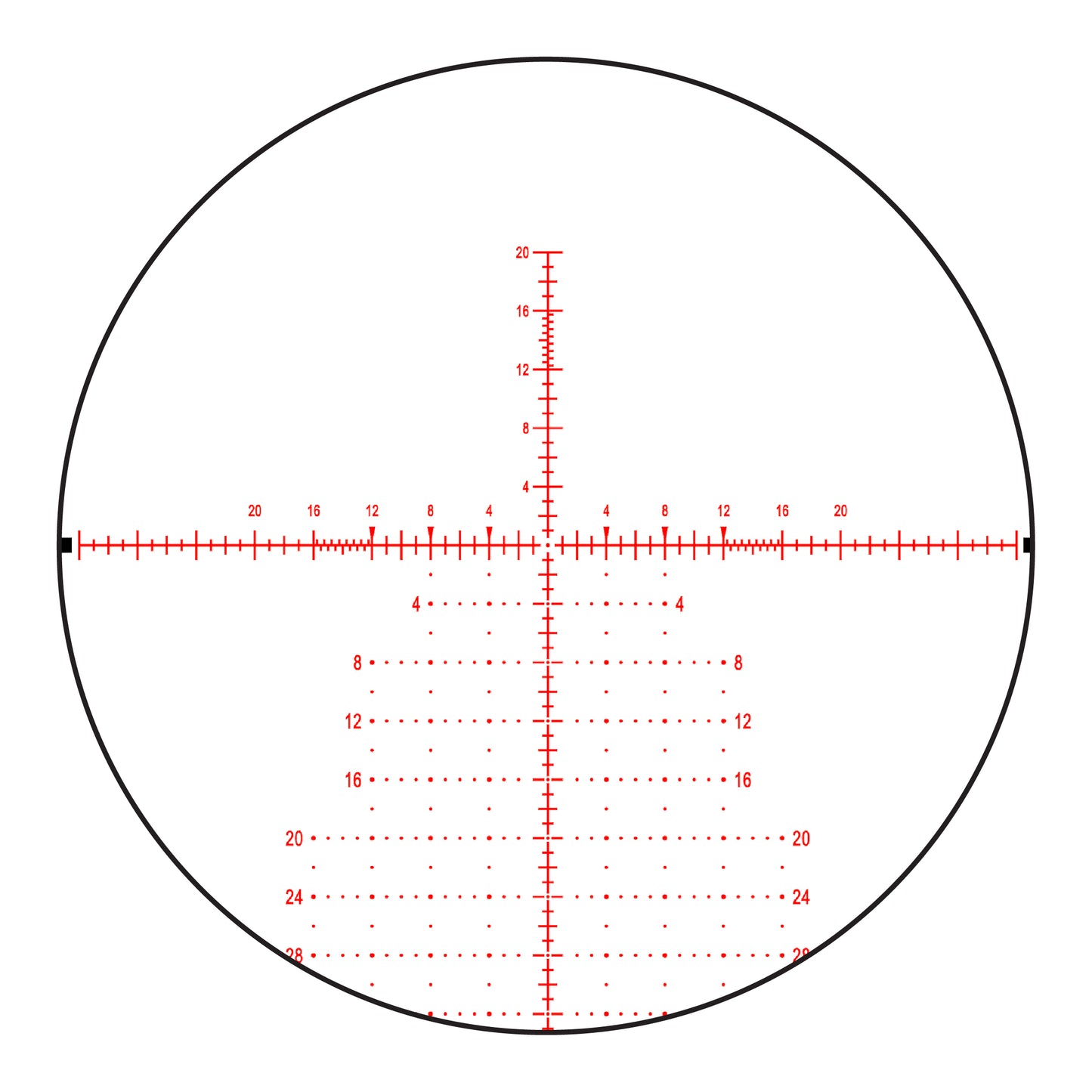

APR-2D MOA
-

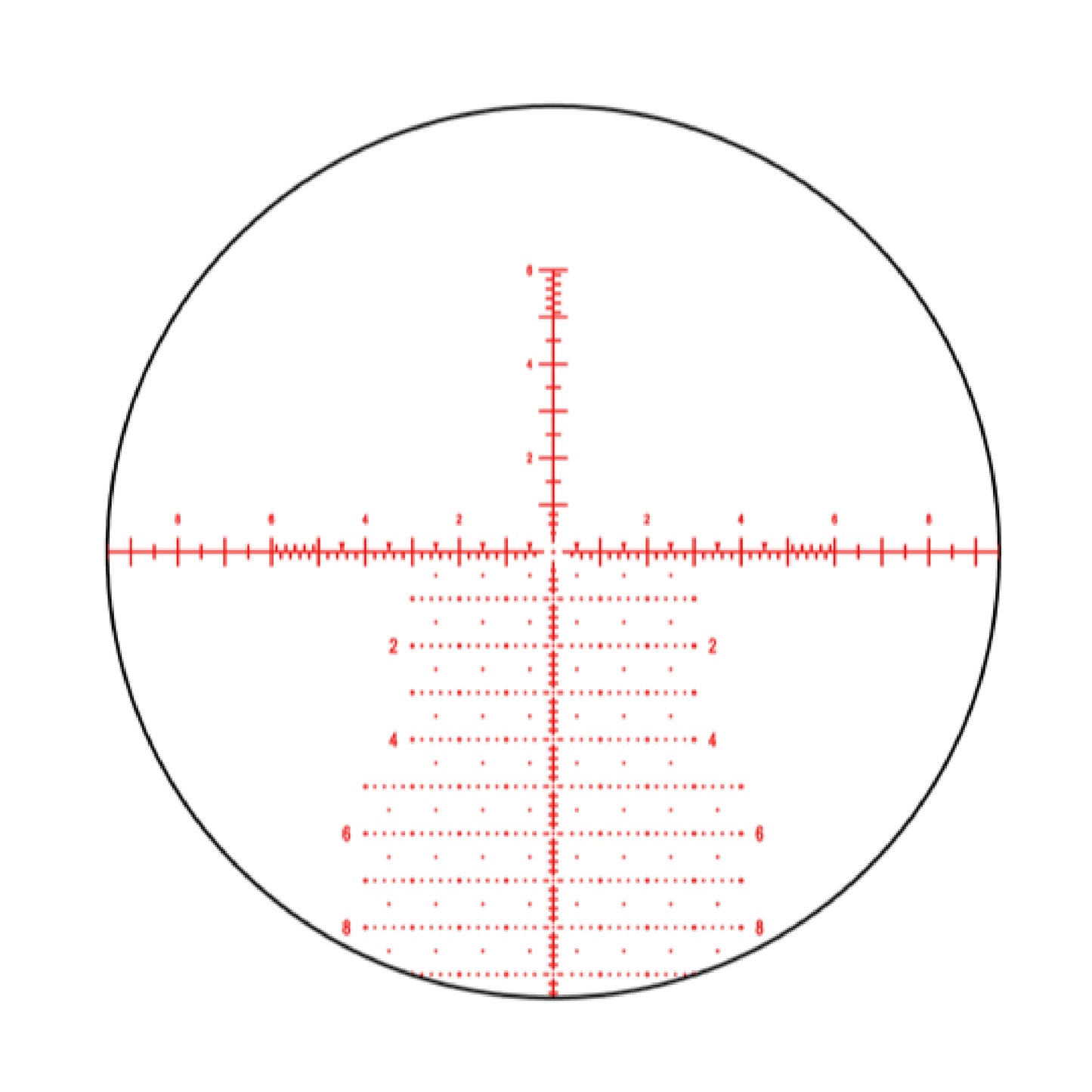

APR-2D MRAD
Collapsible content
Features
- 30mm Main Body Tube
- Illuminated,First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- AdvancedFully Multi-Coated Lenses With Anit-Fouling Layer

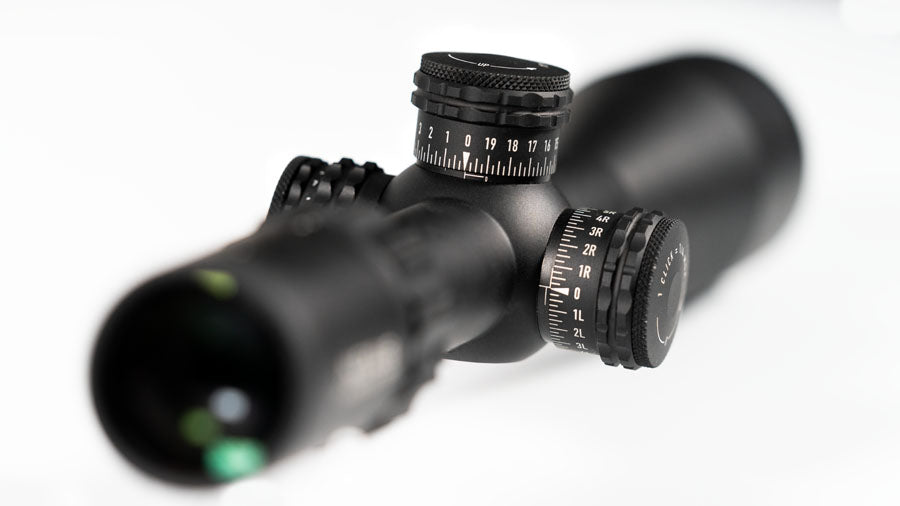

- Tool-Free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop

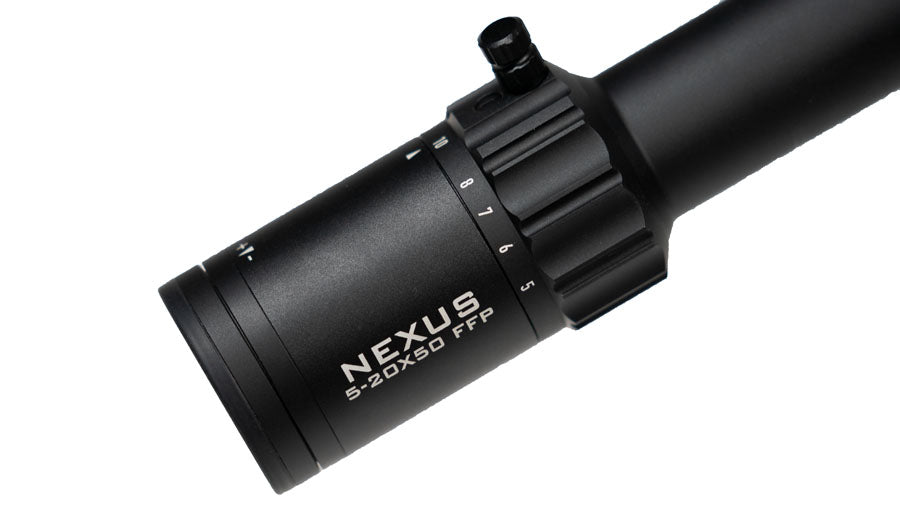

- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Rubber Lens Covers included
specifications
- MAGNIFICATION RANGE 5-20x
- TUBE DIAMETER 30mm
- OBJECTIVE LENS DIAMETER 50mm
- EYE RELIEF 77-93mm
- FIELD OF VIEW @ 100yds: 23.3-5.8Ft
- CLICK VALUE 1/4 MOA (20 MOA / REV) 1/10 MRAD (10 MRAD / REV)
- ELEVATION ADJUSTMENT RANGE 80 MOA 23.2 MRAD
- WINDAGE ADJUSTMENT RANGE (50 MOA) (14.5 MRAD)
- MINIMUM PARALLAX (10 YDS) (10 METERS)
- LENGTH (13.8Inches) (350mm)
- WEIGHT (28oz) (794g)
