Element Optics

ELEMENT HELIX HDLR 2-16×50 SFP

ELEMENT HELIX HDLR 2-16×50 SFP

Regular price $579.99 USD
Regular price $639.99 USD Sale price $579.99 USD
Sale Sold out
Shipping calculated at checkout.
CHOOSE RETICLE

We’ve designed the HELIX in a way that puts the important things first: clear glass, smart reticles, innovative features and a turret system superior to other products in the same price class. The HDLR takes things one step further, with HD Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. We’ve kept the ever popular Tool-Free system and Zero-Stop on the Elevation turret for ease of use when dealing for extended ranges, but have capped the windage for a more hunter-friendly, compact feel. Stringent quality control procedures give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!

View full details

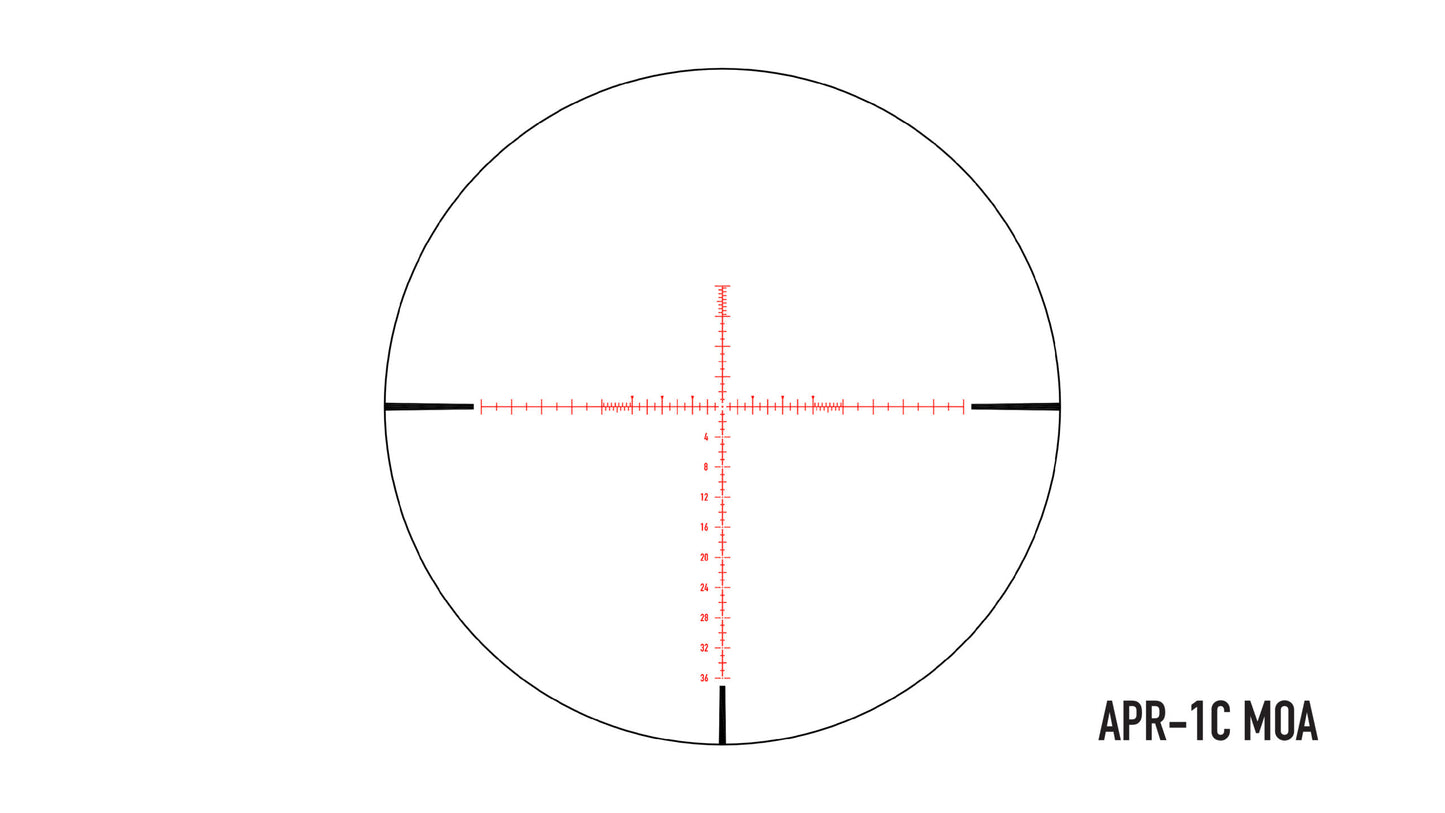

  • APR-1C MOA

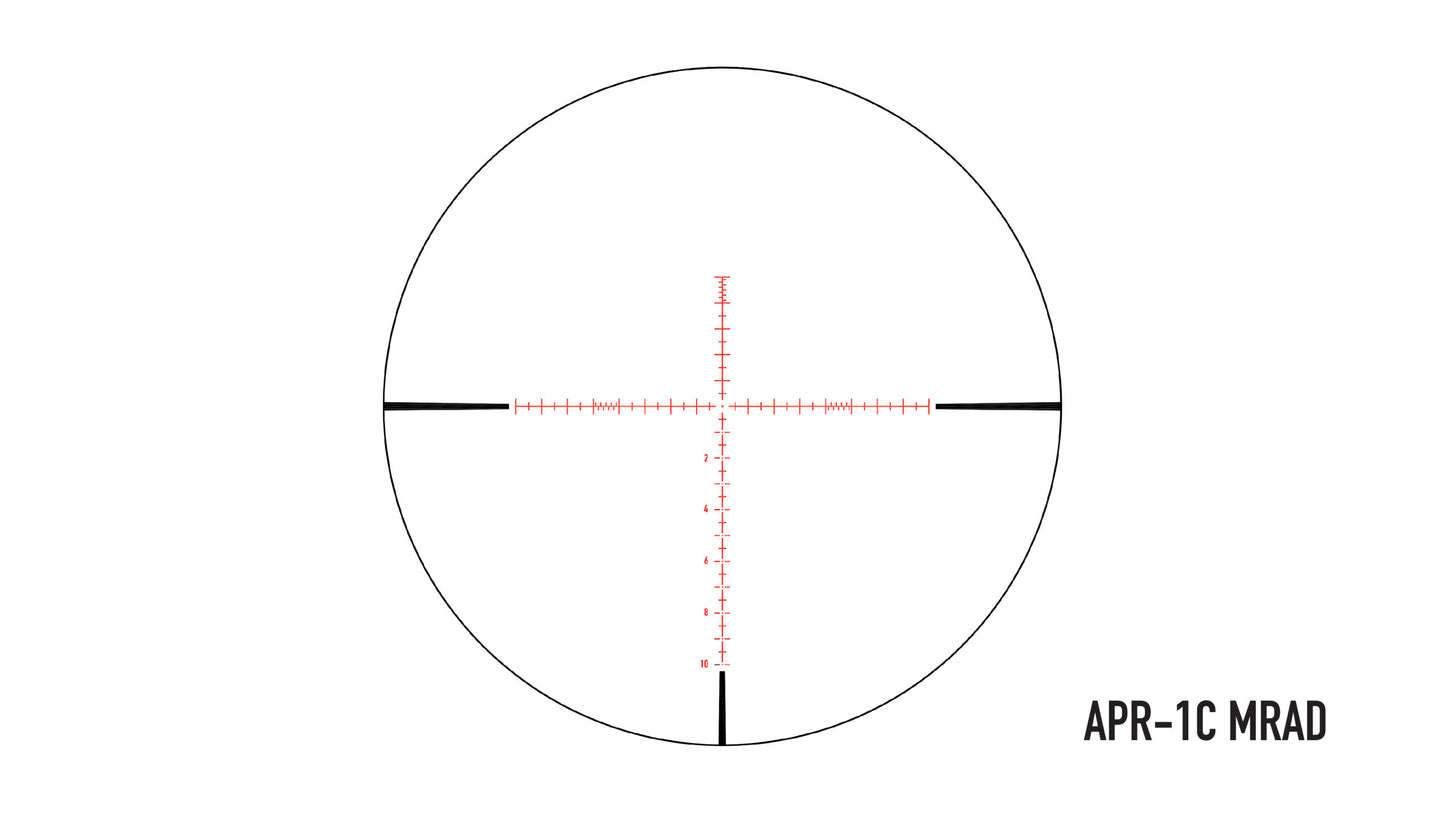

  • APR-1C MRAD

Collapsible content

Features

  • 30mm Main Body Tube
  • 8x Zoom Optical System
  • Second Focal Plane Retical
  • Aircraft Grade Aluminium
  • Side Parallax: 10yds-Infinity
  • Fully Multi-Coated Lenses With HD Glass
  • Tool-Free Exposed Elevation Turret, Capped Windage Turret
  • Zero-Stop
  • Removable Magnification Throw Lever
  • Waterproof, Fog-proof, Shockproof & Nitrogen Purged
  • Sunshade, Lens Cloth & Rubber Lens Covers included

specifications

  • MAGNIFICATION RANGE 2-16x
  • TUBE DIAMETER 30mm
  • OBJECTIVE LENS DIAMETER 50mm
  • EYE RELIEF 4"
  • FIELD OF VIEW @ 100m: 20.3-2.51m
  • CLICK VALUE 1/4 MOA 1/10 MRAD (6 MRAD / REV)
  • ELEVATION ADJUSTMENT RANGE 100MOA 29 MRAD
  • WINDAGE ADJUSTMENT RANGE (45 MOA) (13 MRAD)
  • MINIMUM PARALLAX (10 YDS) (10 METERS)
  • LENGTH (13.39Inches) (340mm)
  • WEIGHT (27.1oz) (770g)
