Element Optics

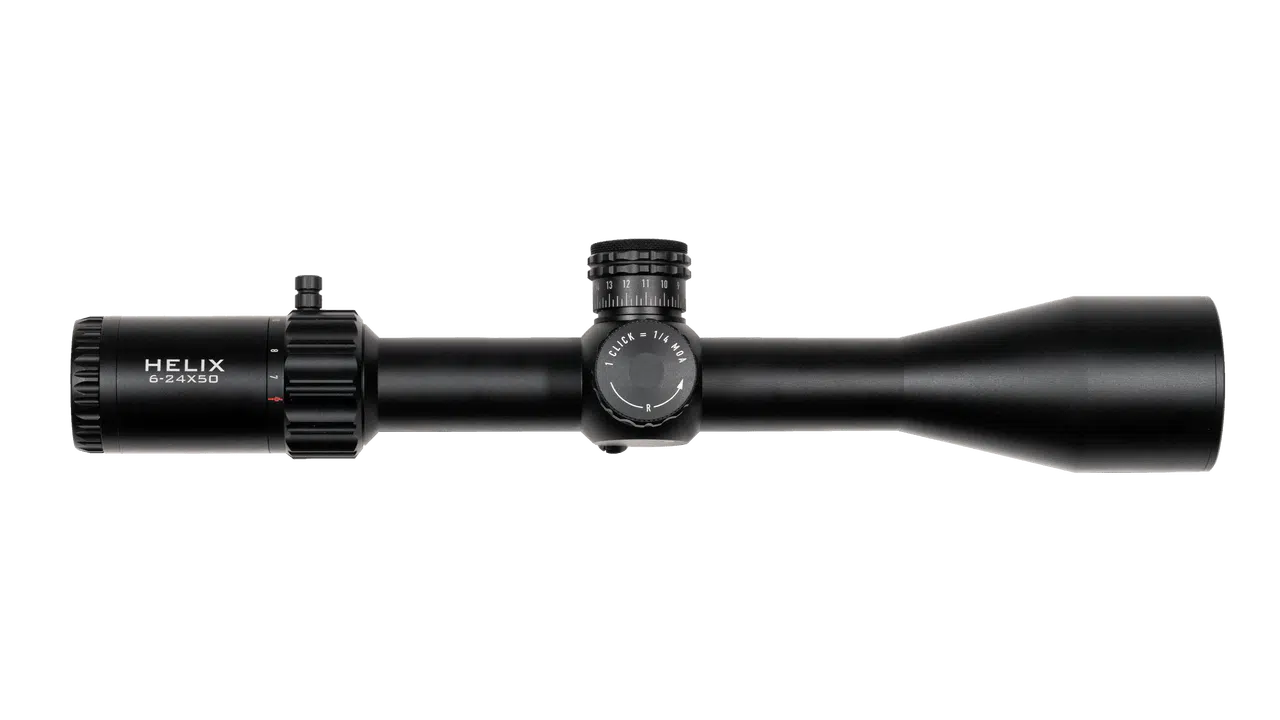

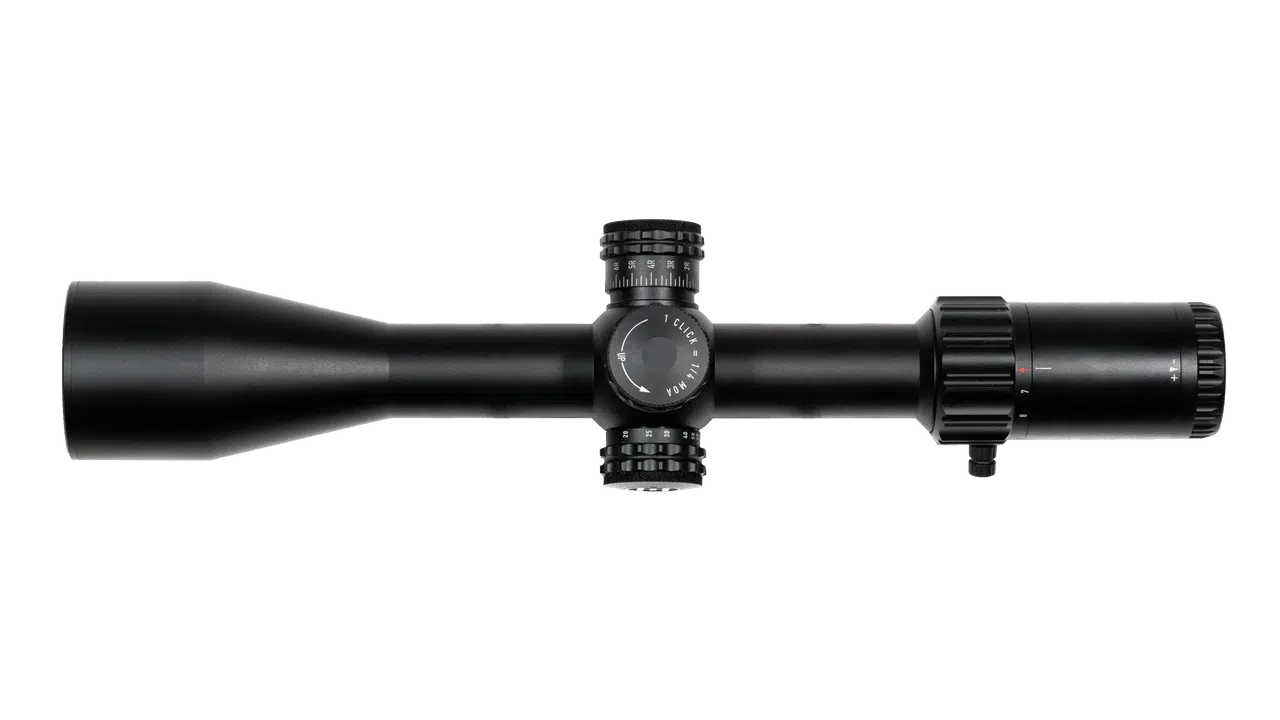

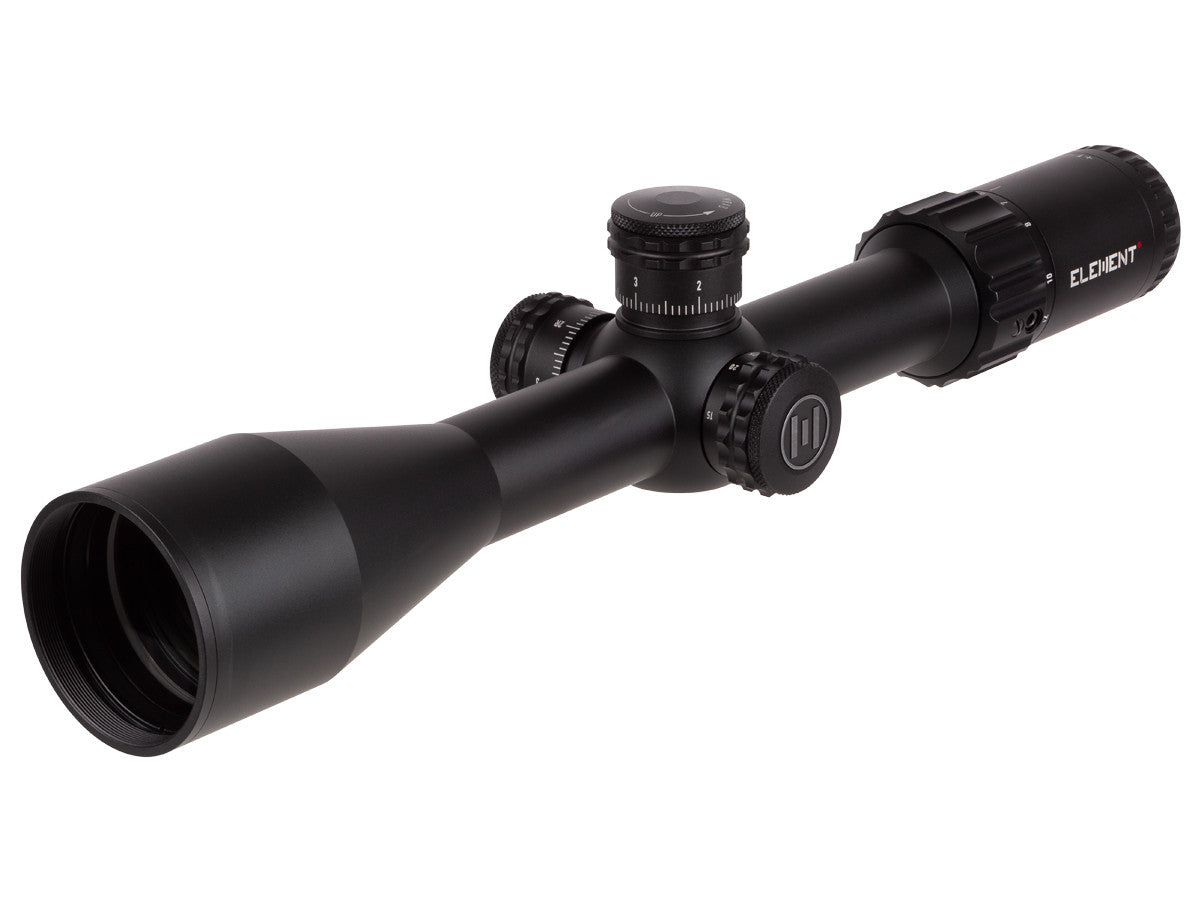

ELEMENT HELIX 6-24X50 SFP
ELEMENT HELIX 6-24X50 SFP
Couldn't load pickup availability
Looking for a riflescope that punches above its weight? Something that holds its own against products twice its price? We’ve designed the HELIX in a way that puts the important things first: clear glass, smart reticles, innovative features and a turret system superior to other products in the same price class. Our turret system has been upgraded from your stock-standard sporting optic to feature stainless steel internals for resistance against wear-and-tear when dialing regularly – something that modern shooting disciplines require. The tool-free turrets and zero-stop mechanism give you high end features without breaking the bank, and the 24x reticle calibration allows you to effectively use the reticle at 12x and 6x if you so wish (with some basic math, of course!). We’ve introduced quality control checks to give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!
Share






-

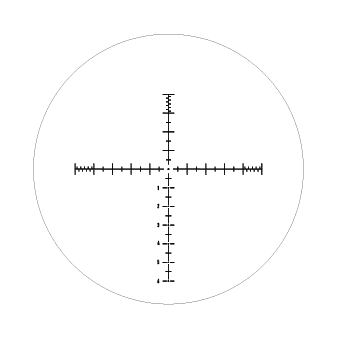

EHR-1C MOA
-

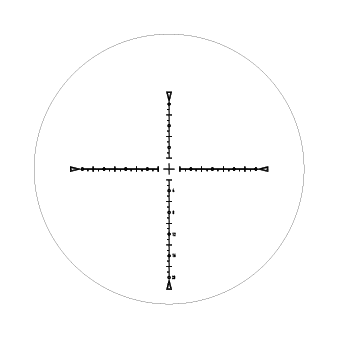

APR-1C MRAD
Collapsible content
Features
- 30mm Main Body Tube
- Second Focal Plane Reticle
- Compact, Lightweight Design
- Aircraft Grade Aluminum
- Side Parallax: 10yds-Infinity
- Fully Multi-Coated Lenses
- Tool-Free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Rubber Lens Covers included
specifications
- MAGNIFICATION RANGE 6-24x
- TUBE DIAMETER 30mm
- OBJECTIVE LENS DIAMETER 50mm
- EYE RELIEF 3.94-3.54 Inches
- FIELD OF VIEW @ 100yds: 19.1-4.2 ft
- CLICK VALUE 1/4 MOA (15 MOA / REV) 1/10 MRAD (6 MRAD / REV)
- ELEVATION ADJUSTMENT RANGE 65 MOA 11.6 MRAD
- WINDAGE ADJUSTMENT RANGE (40 MOA) (10 MRAD)
- MINIMUM PARALLAX (10 YDS) (10 METERS)
- LENGTH (14.3 Inches) (363mm)
- WEIGHT (26oz) (737g)
